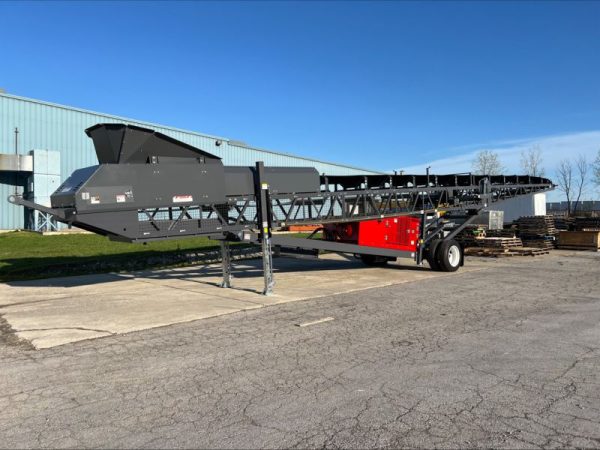

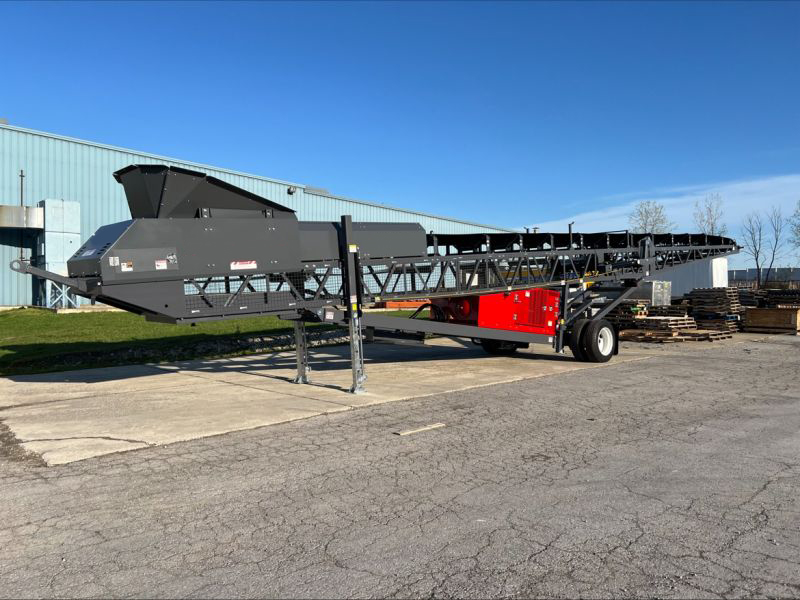

60’-0 Pit Portable Radial Stacking Conveyor
60’-0 Pit Portable Radial Stacking Conveyor - Image 2

60’-0 Pit Portable Radial Stacking Conveyor

$25,300.00

Pit Portable Conveyors are heavy-duty truss conveyors that are assembled on-site and are commonly used at one location with rare occasions of moving off site.  Pit Portable Conveyors are equipped with a pintle hook to move around the site but are not designed to be pulled down the road.  Our pit portable conveyors are mounted on oversized axles 10’-0 to improve stability while in the radial position.

Conveyor Width

Travel

Power Supply (Self-contained, Electric, or Hydraulic)

Power Supply

Drive Motor

Options

Tarps provided by others
Order total:
Add to quote
Categories: ,

Description

Specifications:

  • Truss: 24”
  • Cord Angles: 3x3x1/4”
  • Lattice: 2”x2”x1/4”
  • Idlers: 4” Cema Rated for 24” wide belt
  • 5” Cema Rated for 30” and 36” wide belt
  • HP: 10 HP , #4 Reducer for 24” and 30” wide belt
  • 15 HP, #4 Reducer for 36” wide belt
  • Wheels: 8 Bolt, 16”
  • Tires: 24” wide belts -10 ply,
  • 30” and 36” wide belts -12 Ply

Additional information

Pit Portable

Standard with military pintle hook
Width

24”, 30”, 36”
